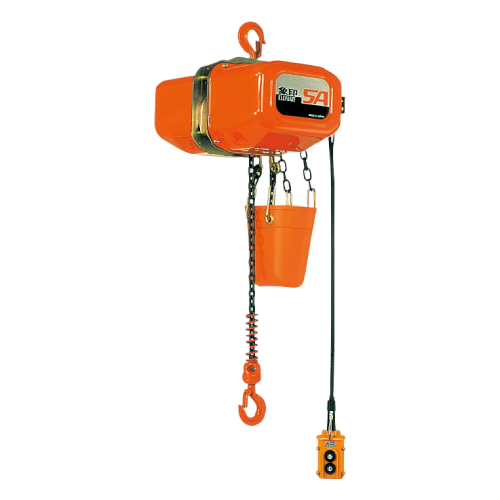

ELEPHANT SA Series

รอกโซ่ไฟฟ้า ELEPHANT SA Series

รอกโซ่ไฟฟ้า ELEPHANT SA Series สินค้านำเข้าคุณภาพสูงจากประเทศญี่ปุ่น มอเตอร์ออกแบบให้ใช้กับงานหนักมีความแข็งแกร่ง กล่องโซ่ทำจากพลาสติกที่ทนทาน ระบบหล่อลื่นด้วยจาระบี ระบบสายใช้การต่อที่ไม่ยุ่งยาก มีให้เลือก 3 รุ่น ขนาดเริ่มตั้งแต่ 0.5, 1, และ 2 ตัน ตามลำดับ รองรับไฟฟ้า 380V เป็นรอกโซ่ไฟฟ้าระบบ 2 ทิศทาง ระยะยกมาตรฐาน3และ 6 สามารถเพิ่มความยาวโซ่ได้


Electric Chain Hoist ELEPHANT SA Series, high quality products imported from Japan, motors designed for heavy duty use with strength. The chain box is made of durable plastic. Grease lubrication system The cable system uses a simple connection. There are 3 models to choose from, starting from 0.5, 1, and 2 tons, respectively, supporting 380V electricity. It is a 2-way electric chain hoist with a standard lifting distance of 3 and 6. The chain length can be increased.

คุณสมบัติ

  • มอเตอร์ถูกออกแบบมาเพื่อใช้กับงานหนักและมีความแข็งแกร่งเป็นพิเศษ
  • เบรกมีแบบแม่เหล็กไฟฟ้ากระแสตรงที่มีความแม่นยำสูง
  • โซ่ผลิตจากโรงงานที่ประเทศญี่ปุ่นตามมาตรฐาน
  • โครงสร้างถูกออกแบบมาให้เป็นโครงสร้างแบบปิดมิดชิดที่แข็งแรง
  • ตะขอมีแผ่นเหล็กปิดกันหลุดและสามารถหมุนรอบตัวได้ 360 องศา
  • กล่องโซ่ทำจากพลาสติกที่ทนทาน
  • รอกโซ่ไฟฟ้า มีลิมิตสวิตช์เพื่อตัดการทำงานเมื่อไปถึงขีดจำกัด
  • การต่อสายไฟภายในไม่ซับซ้อน
  • ระบบหล่อลื่นทำด้วยจาระบี
  • สามารถเพิ่มความยาวของโซ่ได้

FEATURES

  • Motor designed for heavy duty applications. Strength
  • DC electromagnetic brake with precision.
  • Chain manufactured by Japanese standards.
  • Structure made of metal closed.
  • A steel hook that dropped off the hook and can rotate 360 degrees.
  • Box chain made from durable plastic.
  • A limit switch will cut up on top.
  • The wiring hassle.
  • With grease lubrication system
  • Can increase the chain length

SPECIFICATION

Model Lifting
Ton
Lifting
Distance m.
Chain Size
Dia x Pitch mm.
Lifting Speed
m/min
Motor hoist
Kw
minimum
Distance mm.
SA-025 0.25 3/6 6.3×19(1) 7 0.45-220V 555
SA-05 0.5 3/6 6.3×19(1) 3.5 0.45-220V 555
SA-1W 1 3/6 6.3×19(2) 1.8 0.45-220V 670
SA-1S 1 3/6 7.1×21(1) 2.7 0.90-220V 590
