ELEPHANT C-21 Series

รอกโซ่มือสาว ELEPHANT C-21 Series

รอกโซ่มือสาว ELEPHANT C-21 Series รอกโซ่ที่ผลิตและนำเข้าจากประเทศญี่ปุ่น มีให้เลือกใช้งานหลายรุ่น ตั้งแต่กำลังยก 0.5-5 ตัน ตามการใช้งาน ได้รับการรับรองระดับโลกจาก DIN 5684 โซ่รอกเป็นเกรด V 100kgf / mm² ทำให้มั่นใจได้ถึงคุณภาพระดับสูงและความสามารถในการรับน้ำหนักที่ดีเยี่ยม ตัวเรือนของรอกโซ่ มีความแข็งแรง ทนทานต่อการกัดกร่อน และสามารถทนอุณหภูมิสูงได้อีกด้วย


The Elephant C-21 Series chain block is a chain hoist that is manufactured and imported from Japan. It offers various models to choose from, ranging from a lifting capacity of 0.5 to 5 tons, depending on the application. It has received global certification according to DIN 5684 standards. The chain of the hoist is of V-grade, with a strength of 100kgf/mm², ensuring high-quality and excellent weight-bearing capabilities. The housing of the chain block is sturdy, resistant to corrosion, and can withstand high temperatures.

คุณสมบัติ

  • ตัวรอกมีความแข็งแรงทนทาน
  • ปราศจากน้ำมันรั่วซึม
  • ตัวรอกมีน้ำหนักเบาและเล็กกระทัดลัด
  • ความต้านทานการสึกหรอ

FEATURES

  • Drop forged, properly normalized hooks.
  • Tough framing.
  • Strong, least corrosive.
  • Electrostatic powder painting.
  • Safe, dry, long-lasting friction disc.
  • Free from oil permeation.
  • Very light and compact body, (9.2kg 1ton).
  • Easy to carry.
  • Elephant’s original long-life chain.
  • Best wear resistance on record
  • for manual hoist.

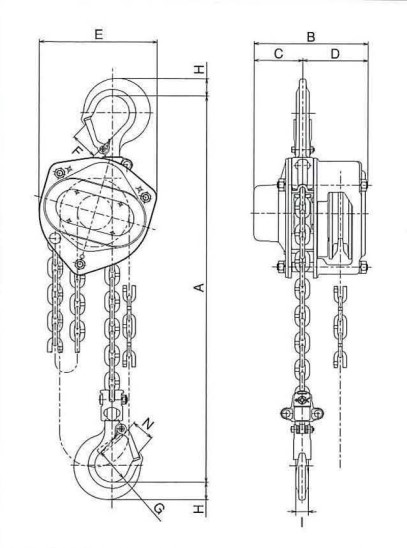

C21-0.5~C21-2
C21-0.5~C21-2
C21-3.C21-5
C21-3 - C21-5

SPECIFICATION

รุ่น กำลังยก
Ton.
ทดสอบ
Ton.
ระยะยก
m.
ระยะยก
Dia x Pitch mm.
โซ่ยก
mm.
ขนาดโซ่
Kg.
C21-0.5 0.5 0.75 2.5 4.3X12 4.5x23 6.1
C21-1 1 1.5 2.5 5.6X17 9.2
C21-1 1.5 2.25 2.5 6.5X19 11.7
C21-2 2 3 3 7.5X21 16.7
C21-3 3 4.5 3 6.5X19 19.4
C21-5 5 7.5 3 7.5X21 33.9

DIMENSION

Model A B *E G H 1 N
C21-0.5 275 131 121 36 17 13 24
C21-1 310 143 148 43 22 16 29
C21-1.5 340 152 168 43 26 21 29
C21-2 384 164 193 53 29 22 34
C21-3 480 152 209 53 35 28 36
C21-5 555 164 297 70 46 34 47
